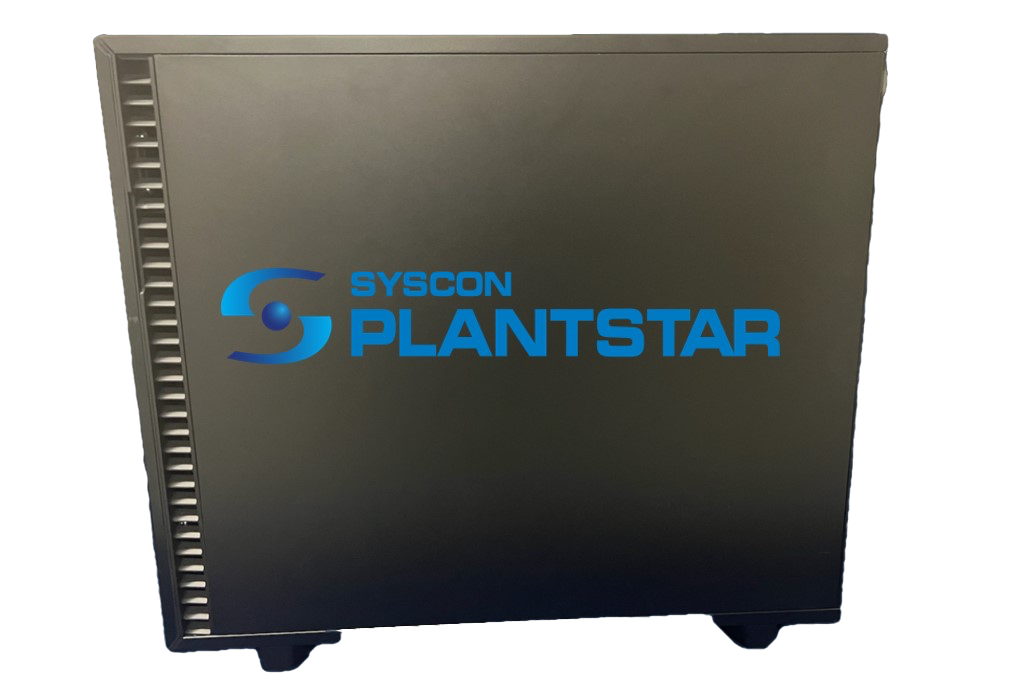

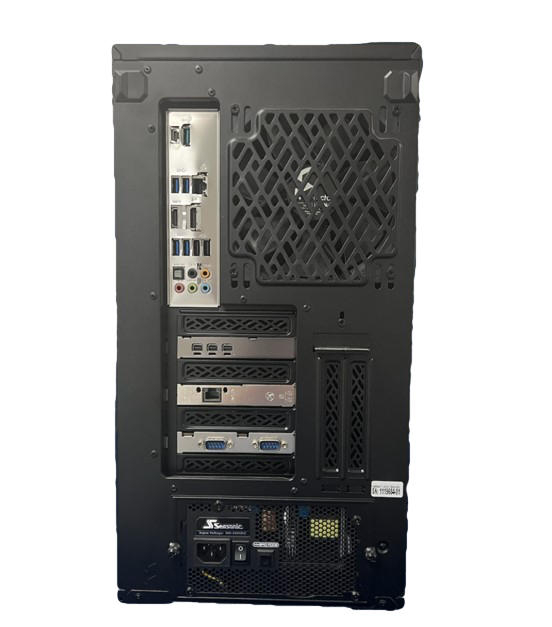

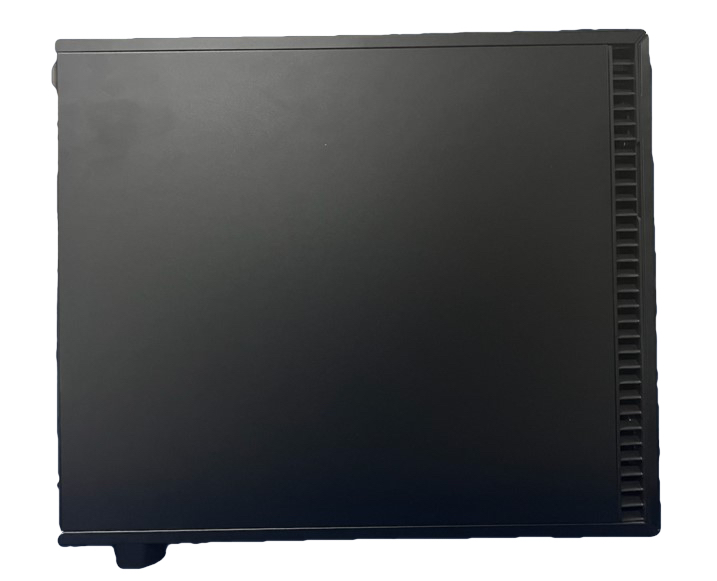

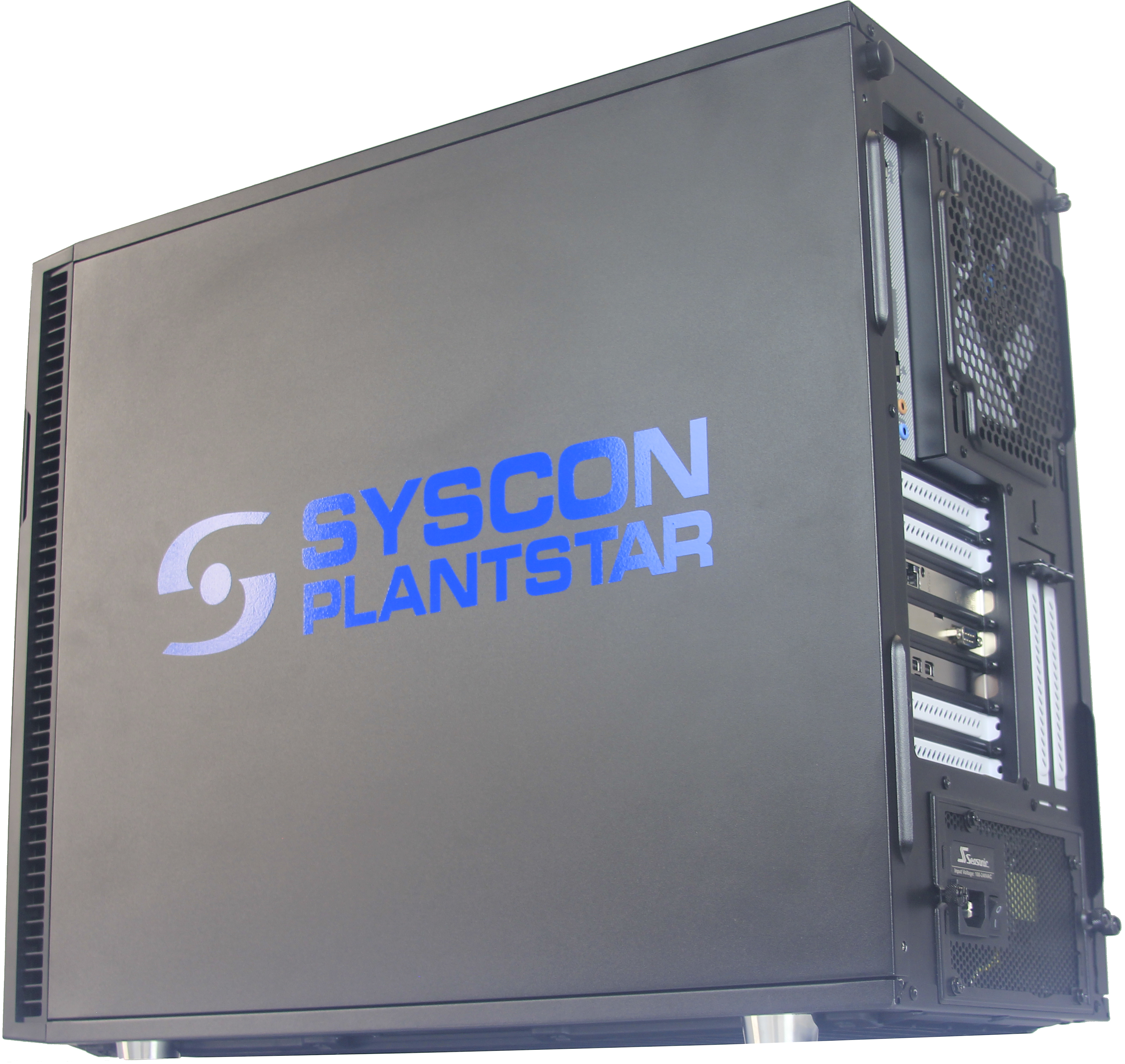

Application Processing Unit (APU)
Discover more than just a server. PlantStar’s APUs are industrial-grade powerhouses that are designed to run your database and take care of the heavy lifting required for leveraging big data. The Application Processing Unit runs the PlantStar application server and contains all the configuration, data, files, and the master database. Available in both high performance server grade tower and rack mount configurations, and also available for VM deployments, the PlantStar APU fits your IT requirements. And, like all PlantStar hardware, it’s covered with Advance Replacement warranty service (physical servers only) as long as your PlantStar Software License and Maintenance Contract remains in place.
- High performance, high capacity database and application server
- Debian 11 Linux operating system
- Built-in redundancy and capability
- 24/7 support for critical failures
- Lifetime Advance Replacement Warranty (physical servers)
Physical APU Specifications

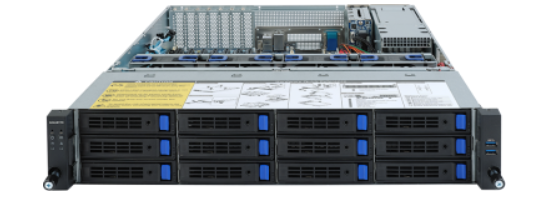

- AMD EPYC 7003 Series 1U rack mount or tower chassis
- AMD EPYC 7313P Processor 16-core 3.00GHZ 128MB Cache (155W)
- 8 x 8GB PC4-25600 3200MHz DDR4 ECC RDIMM
- Dual 1-Gigabit Ethernet
- Dual 650K (rack) or 800W (tower) redundant power supplies
- 256GB Kioxia Xg6 M.2 PCIe 3.1 x 4 NVMe Solid State Drive
- 3x 1.92TB Micron 5300 MAX Series 2.5" SATA 6.0Gb/s Solid State Drive
- 2x AC power cord (North America) C13, NEMA 5-15P 2.1m CAB-AC
- Standard Rail Kit for 1U/2U servers (rack version)
- Dimensions: 17.2" x 1.7" x 27.9" (rack) or 24.4" x 8.66" x 16.73" (tower)
Virtual APU Specifications
- 12+ vCPU
- 32 GB RAM
- 1TB storage space
- 2x 1Gb/s network connections
- VPN for 24/7 Support
- Dedicated subnet / VLAN
- Offsite backup location
- SSH access from VPN
- SSH, HTTP, HTTPS, port 8888 minimum access from VPN
- http://*.debian.org for OS / Software updates
- SSH outbound access to ssh://customer-ssh.syscon-intl.com for PlantStar package access. Connection secured with public-key encryption and password combination.
- Backups can be stored securely at ssh://customer-ssh.syscon-intl.com or customer backup location if preferred.
- Corporate network port 5432 optional
With more than 50 years of industry experience, PlantStar has vast experience developing MES software. Our latest version, PlantStar 4.0, offers industry-leading features that allow companies to manage their processes more efficiently.
